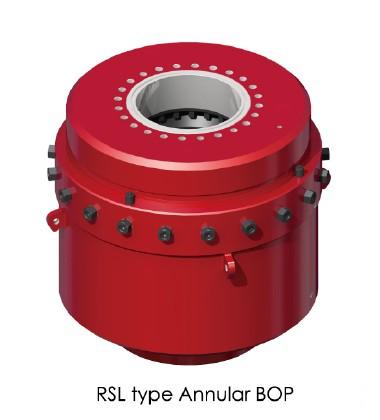

Product Introduction
List1: Specification of Model A Annular BOP
|
Model |
Bore (in.) |
Working pressure (MPa/psi) |
Strength pressure testing (MPa/psi) |
Hydraulic control pressure (MPa/psi) |
Close volume (l) |
Open volume (l) |
Dimensions (mm) |
Total weight (For reference) (kg) |
Product Code |
Hydraulic Connection |
Type |
|||
|
A |
B |
C |
D |
|||||||||||
|
FHZ18-21 |
7 1/6 |
21/3000 |
42/6000 |
≤10.5 /1500 |
13.9 |
11.2 |
800 |
926 |
900 |
983 |
1927 |
FH1821.00 |
NPT1″ |
A1 |
|
FHZ18-35 |
35/5000 |
70/10000 |
13.9 |
11.2 |
800 |
954 |
900 |
1011 |
1943 |
ZY8103.00 |
NPT1″ |
A1 |
||
|
FHZ18-70 |
70/10000 |
105/15000 |
36 |
27 |
1200 |
1250 |
1490 |
|
6293 |
RJ11185.00 |
NPT1″ |
A2 |
||
|
FHZ35-70 |
13 5/8 |
70/10000 |
105/15000 |
116 |
117 |
1554 |
1742 |
1814 |
|
15190 |
RJ11189.00A |
NPT1″ |
A2 |
|
|
FHZ54-14 |
21 1/4 |
14/2000 |
21/3000 |
95.3 |
94.5 |
1380 |
1437 |
1512 |
|
7660 |
FHZ54-14.00 |
NPT1″ |
A2 |
|
